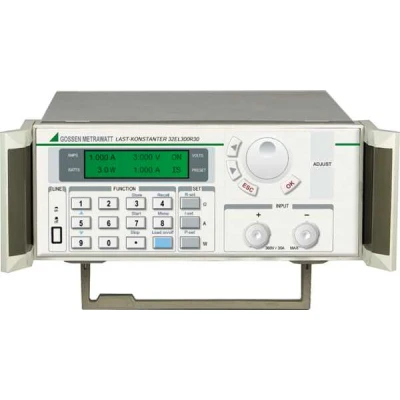

32 EL 300 R30
Electronic Loads, Power: 300 W, Voltage: 0…350 V DC, Current: 0…30 A
SSL electronic load series 32EL laboratory power supplies are high precision DC power sinks for use in R&D, production, service and training.
Two variants are available with 100 W and 300 W input power.
The devices feature excellent regulating accuracy and minimal residual ripple, and outstanding ease of operation.
- Floating output
- Safe electrical separation
- Output can be switched on and off
- Voltage and current regulating (square wave)
- Rotary encoders for adjusting voltage and current
- Adjustment is also possible with keys
- Multifunctional LCD
- Setup memory for device settings, load profile
- Protective functions, e. g. adjustable power limiter
- Attractive design, benchtop instrument, suitable for mounting to a 19″ rack
- Accessories
- Computer control with RS232 or USB via interface adapter possible
- Shortname SSL300
- Article No. K851A
- Type 32EL300R30
- Front panel input 1
- Input power 300W
- Maximum current 0 – 30 A
- Maximum voltage 350 VDC
- Resolution current sink 10 mA
- Resolution R-Load characteristic 10 mOhm
- Mains input 115 / 230 VAC 50 / 60 Hz
- Dimensions W / H / D (mm) approx. 215 / 100 / 280
- Weight approx. 5 kg
