ABMA

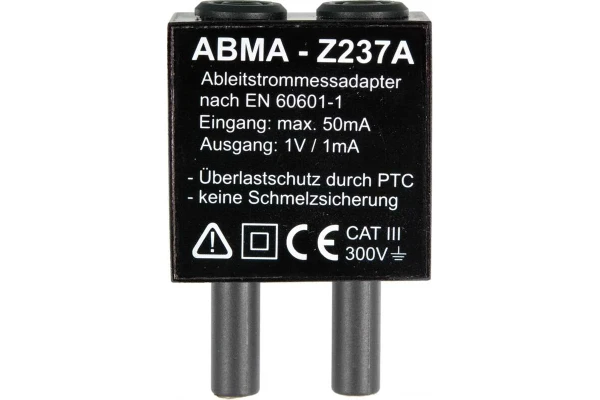

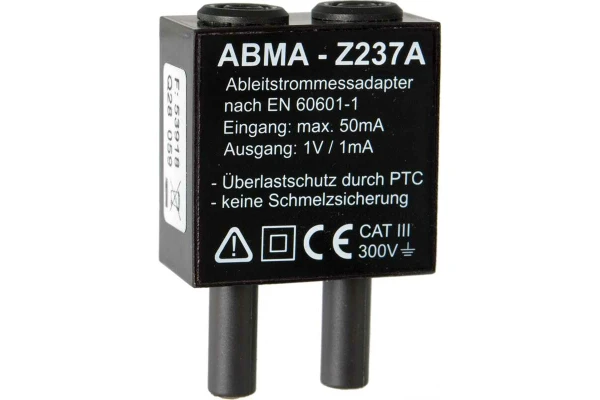

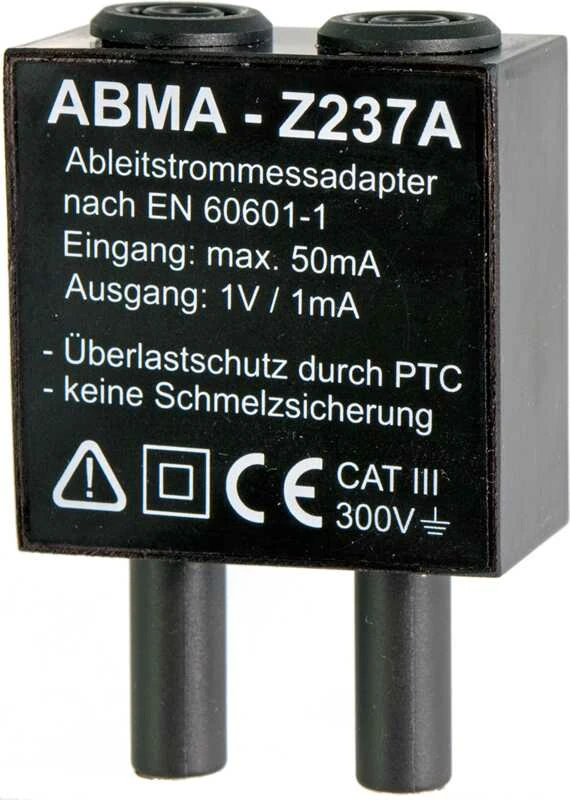

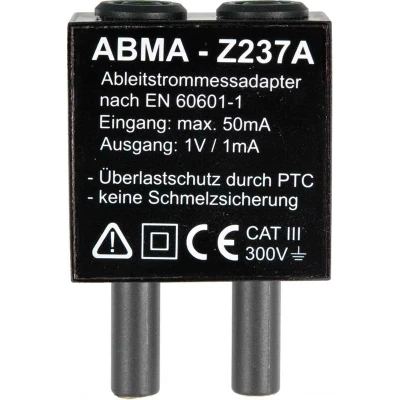

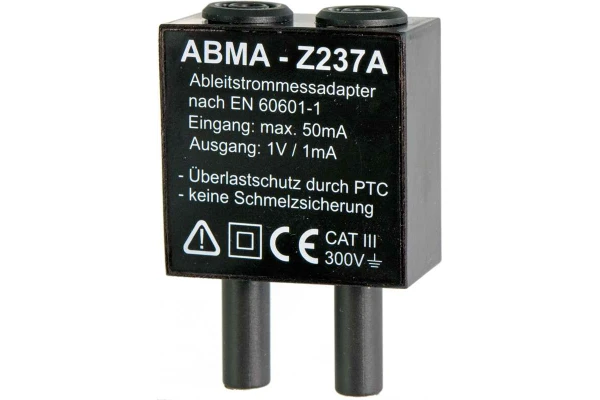

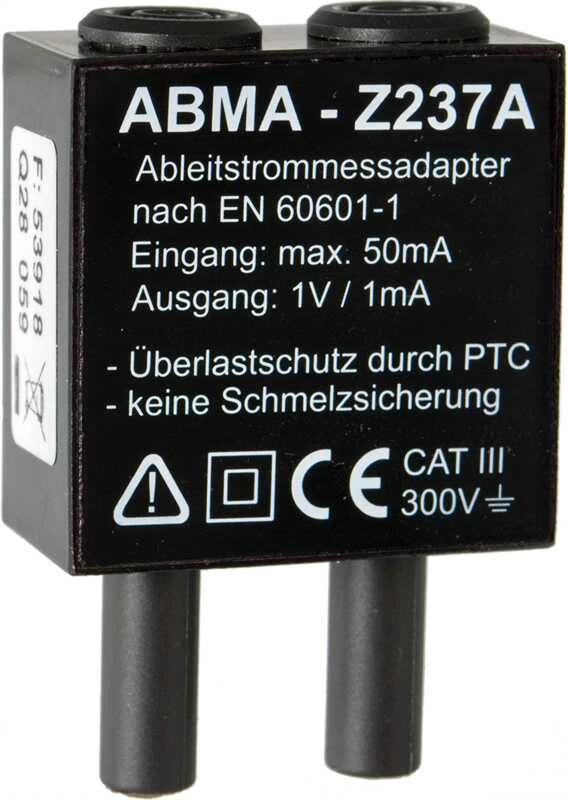

Leakage Current Measuring Adapter
Accessory for measuring leakage current and patient auxiliary current with a multimeter
Overload protection by means of PTC:
As opposed to a fuse link, the PTC resets itself automatically after being tripped and then disconnected from the input circuit.
Input
- Input current: 0 … 50 mA AC, DC
- Measuring shunt: 1 kΩ, 1.0%
- Overload protection: PTC
- Max. input current: 150 mA AC, DC
Output
- Output voltage: 0 … 50 V (1 V/mA) AC, DC
- Output resistance: 10 kΩ
- Frequency response per EN 60601-1
Safety
- Measuring category: CAT III 300 V
Connections
- Input: Two 4 mm safety sockets, clearance: 19 mm in accordance with the standard
- Output: Two 4 mm safety plugs, clearance: 19 mm in accordance with the standard
- 1 leakage current measuring adapter
- 1 set of operating instructions
- 1 calibration report
