LINAX 4000M

SKU: A4003Categoria: Etichette: , , , , ,

1…4-Channel Continuous Line Recorder, 144 x 144 mm

  • Measuring systems 1-4 with printing function
  • Printer roll 32 m
  • DC measuring ranges 0/4-20 mA; ± 2,5 mA; ± 20 mA
  • DC measuring ranges ± 75 mV
  • DC measuring ranges ± 10V /± 20 V
  • DC measuring ranges Thermocouples: B,E,J,K,L,R,S,T
  • DC measuring ranges Pt 100, 2-wire
  • DC measuring ranges Pt 100, 3-wire
  • Parameters configuration Yes
  • Alphanumeric 8 lines of 16 char. each
  • Interface RS485
  • Limit value monitoring 2 per channel (4 relays)
  • Event marking Yes (2 tracks
  • Status output Yes
  • Max. paper advance 1200 mm/h
  • Standby mode ja
  • Response time 2s
  • Accuracy class 0,5 per IEC 484 for scale span
  • Supply power 24 V DC, 24 V AC110 V AC, 230 V AC
  • Installation depth 250 mm

Istruzioni per l’uso
Istruzioni per l’uso 2
Certificato CE
Scheda tecnica
Istruzioni per l’installazione
Descrizione dell’interfaccia

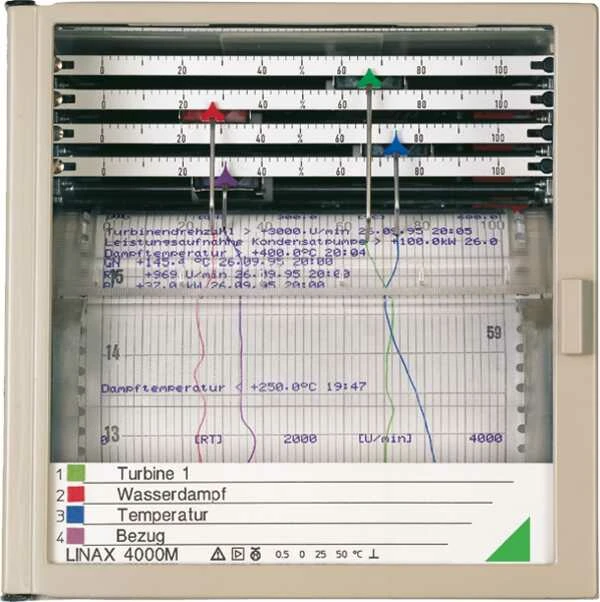

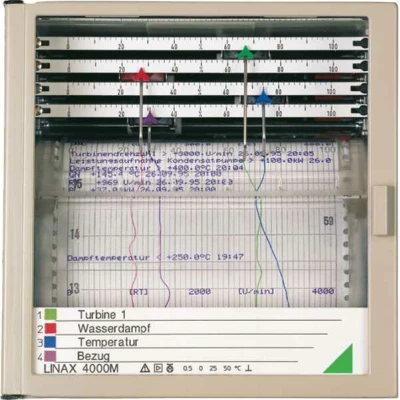

Continuous-line recorder LINAX 4000M with universal card and parameter setting as per request

Front dimensions 144 × 144mm
