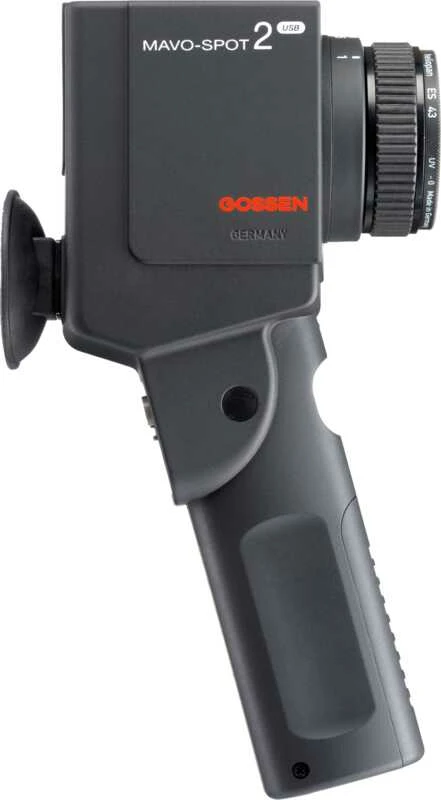

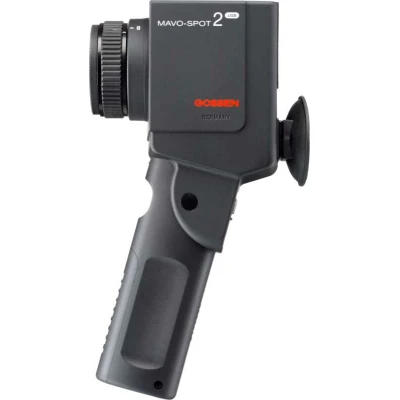

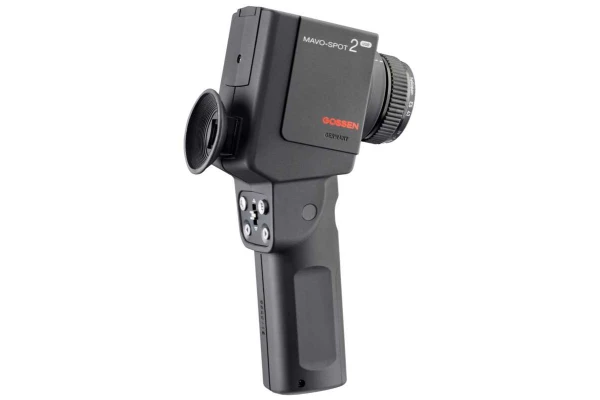

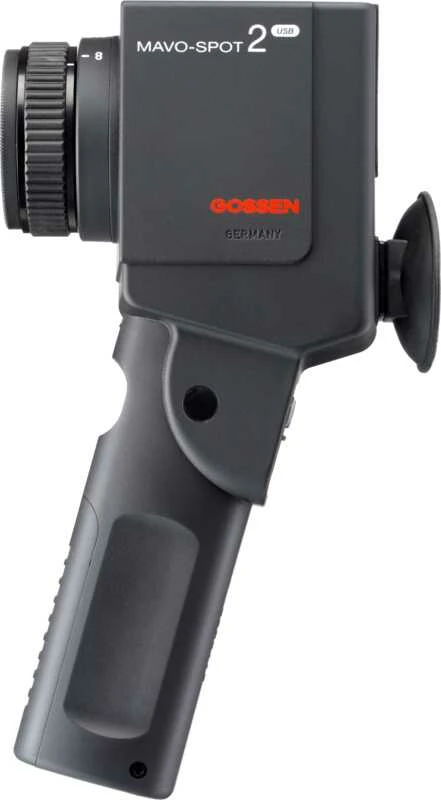

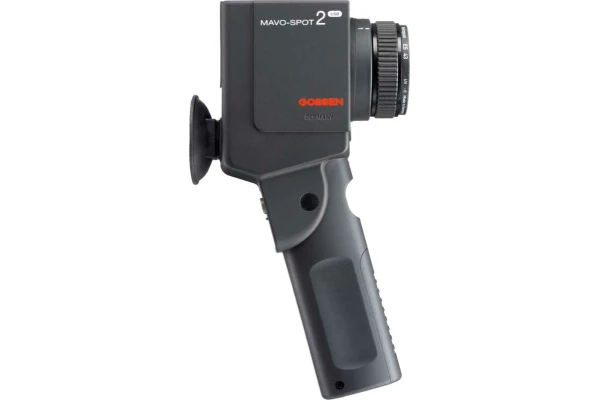

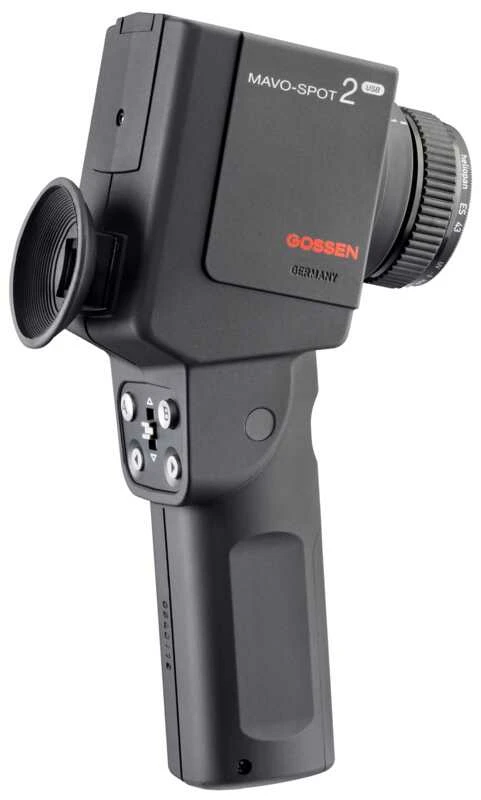

MAVO-SPOT 2 USB
Luminance meter class B DIN 5032-7 for distance measurement with 1° measuring angle
The high-precision luminance meter for distance measurement with 1° measuring angle is classified in class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It measures the brightness effect of an illuminated or luminous surface in candela per square meter (cd/m²) or foot-lambert (fL), taking the ambient light into account.
- Spot measurement with 1° measuring angle
- SLR viewfinder with 1° measuring circle and 15° field of view
- Distance measurement from 1 m to oo, with optional close-up lenses from 34 cm
- Comparison and ratio measurement for uniformity, contrast, deviation
- Contact measurement via optional measuring head and adapter disk
- Recording, display and storage of the measured values via GLUX 2 software
- Measuring device and calibration from a single source!
Luminance
- Measuring range: 0.01 cd/m² … 99,990 cd/m²
- Accuracy: +/- 2.5% +/- 2 digits
- Mesauring angle 1°
Miscellaneous
- Supply: 2 × 1.5 V Mignon type AA, continuous operation via USB interface
- Interface: USB 2.0, Mitsumi Mini-B socket
- Memory: 1000 readings or 100 readings each in 10 groups
1 x MAVO-SPOT 2 USB
2 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to Mitsumi plug Mini-B, length 1.5 m
1 x GLUX 2 software (download)

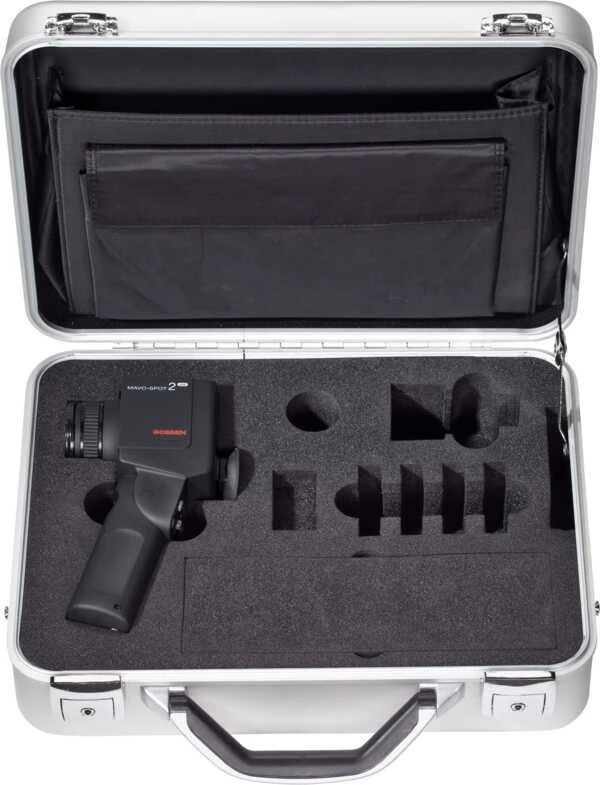

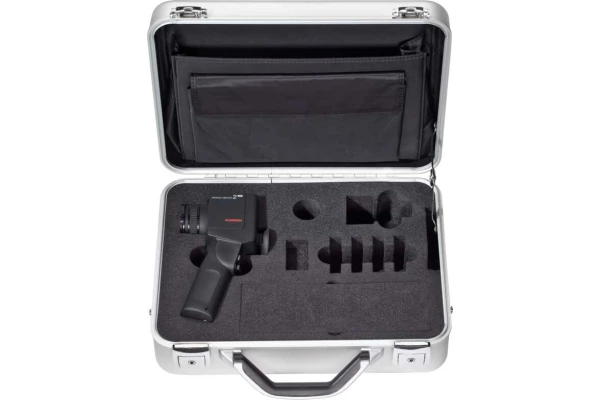

1 x aluminum transport case
1 x operating instructions D/GB
1 x calibration report
