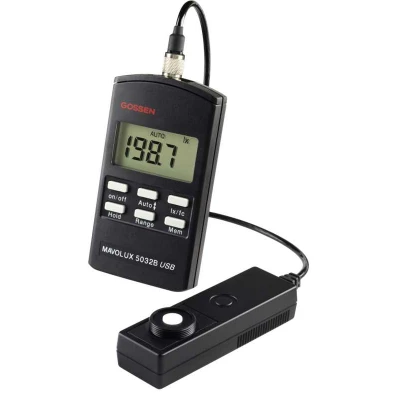

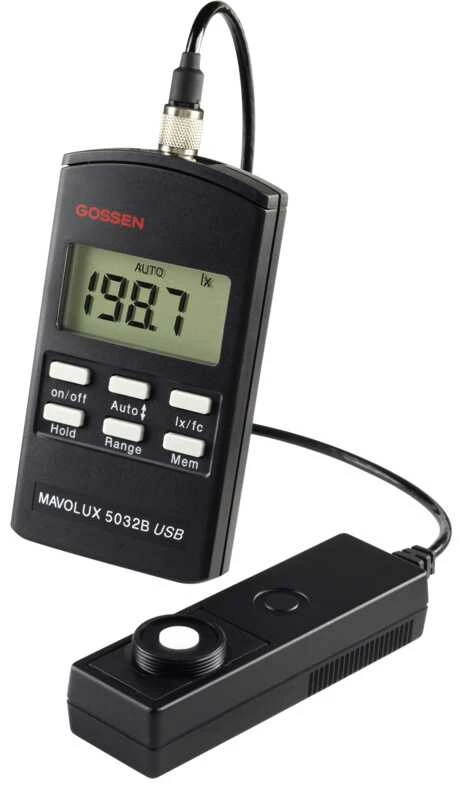

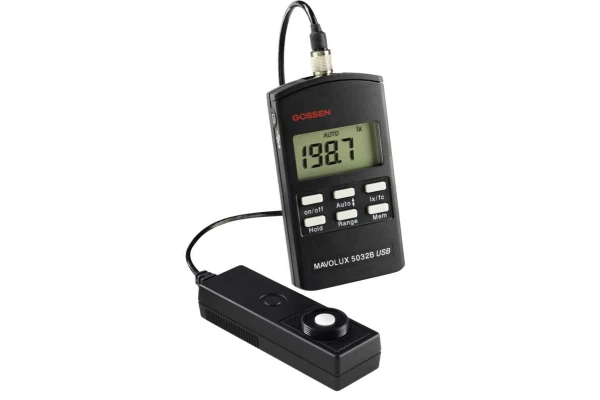

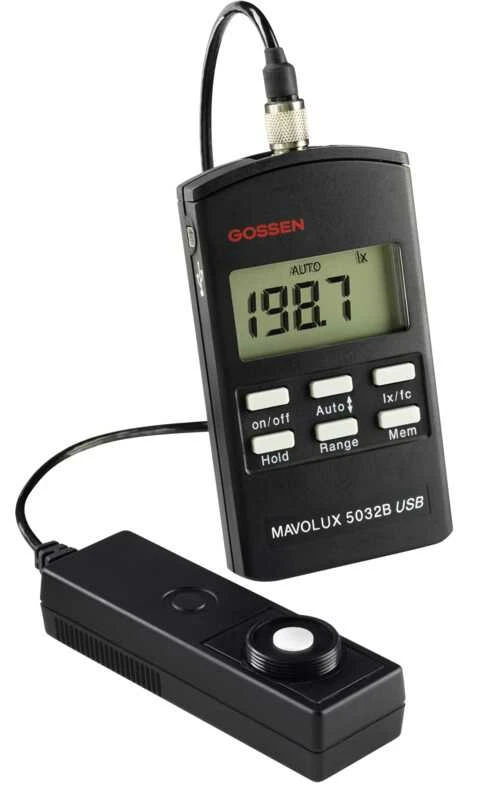

MAVOLUX 5032 B USB
High-precision meter for illuminance class B DIN 5032-7
The high-precision illuminance meter is classified according to class B DIN 5032-7, DIN EN 13032-1 appendix B and ISO/CIE 19476. It measures the intensity with which an area is illuminated in lux (lx) or foot-candle (fc).
- High-resolution measuring range for emergency lighting
- Simple functional expansion with optional luminance attachment
- Simple system integration, serial data transmission, open protocol
- Optional versions with 3 m, 5 m and 10 m probe connection cable
- Continuous operation via USB with power bank, plug-in power supply or on the PC
- Acquisition, display and storage of the measured values via GLUX 2 software
- Measuring device and calibration from a single source!
Illuminance
- Measuring range: 0.01 lx … 199,900 lx
- Accuracy: +/- 3% +/- 1 digit
Luminance with optional luminance attachment M516G
- Measuring range: 0.1 cd/m² … 1,999,000 cd/m²
- Accuracy: +/- 4.5% +/- 1 digit (paired) or +/- 8% +/- 1 digit (not assigned)
Miscellaneous
- Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
- Interface: USB 2.0, Mitsumi Mini-B socket
- Memory: 100 measured values
1 x MAVOLUX 5032 B USB
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to Mitsumi plug Mini-B, length 1.5 m
1 x GLUX 2 software (download)
1 x aluminum transport case
1 x operating instructions D/GB
1 x calibration report
