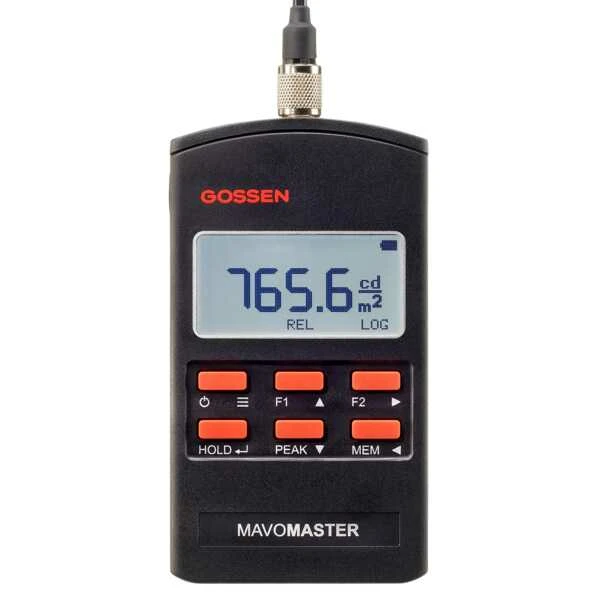

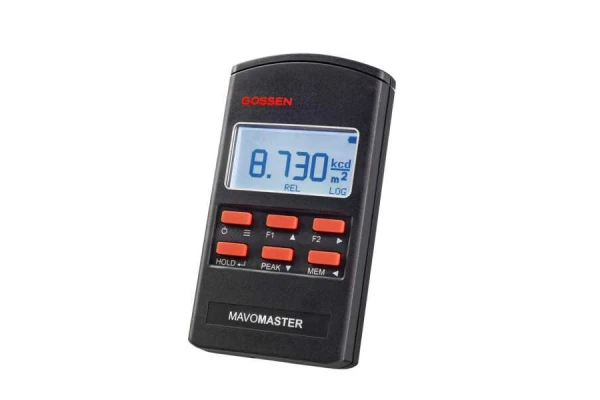

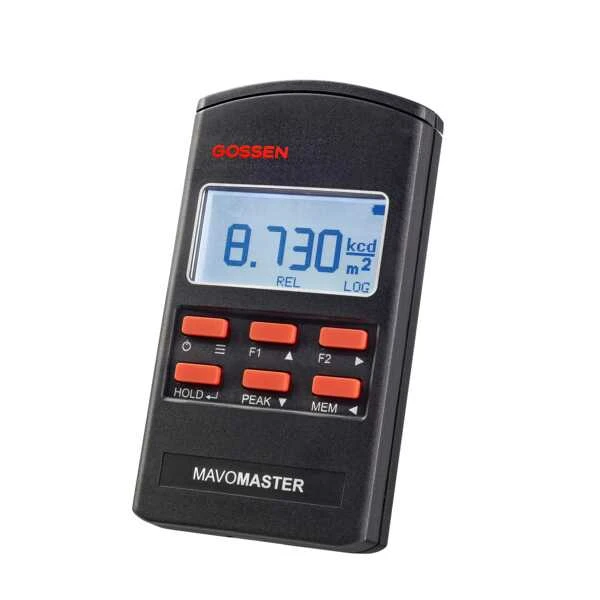

MAVOMASTER

Compact measuring and display device for MAVOPROBE

The MAVOMASTER is a universal measuring and display device that can be used with any MAVOPROBE and the combination forms a stand-alone measuring device. The MAVOMASTER takes over the power supply of the connected probe, recognizes its type and displays the measured variables accordingly.

  • Grid measurement for the assessment of workplaces and interior lighting
  • Extensive measurement functions, relative, integral, deviation, ratio measurement
  • Recording of minimum value, maximum value and mean value calculation
  • Data logger with adjustable log interval
  • Large 4 GB measured value memory, readable via USB, like an external drive on the PC
  • Continuous operation via USB Power bank, plug-in power supply or on the PC
  • EXCEL macros for reporting and data logging

  • Probe connection: Binder socket series 711
  • Display: monochrome FSTN graphic display, 128×64 pixels, 50 mm x 25 mm
  • Control elements: 6 buttons, fluorescent labeling
  • Supply: 1 × 1.5 V Mignon type AA, continuous operation via USB interface
  • Interface: USB 2.0, Micro -B Socket
  • Memory: 4GB

Istruzioni per l’uso
Opuscolo, volantino, brochure, …

1 x MAVOMASTER
1 x 1.5V Mignon alkaline manganese battery (IEC LR 6)
1 x USB 2.0 cable plug A to plug Micro-B, length 1.0 m
1 x EXCEL evaluation / data logger (download)
1 x operating instructions D /GB
