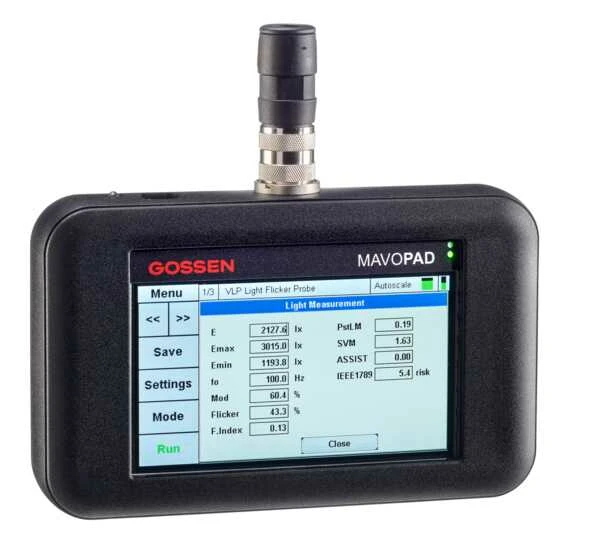

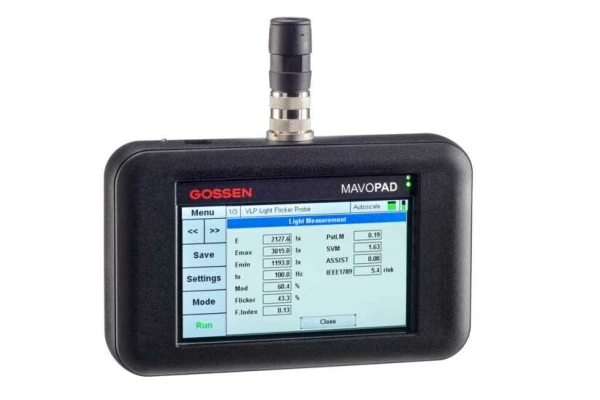

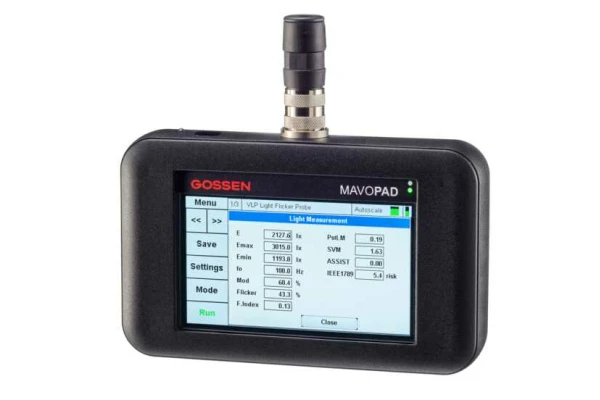

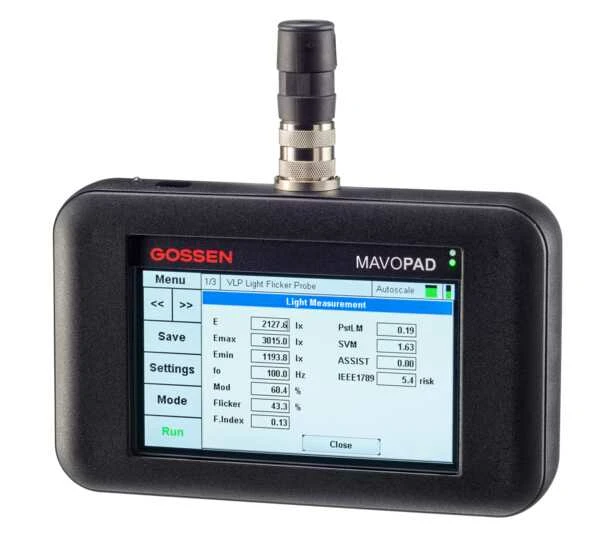

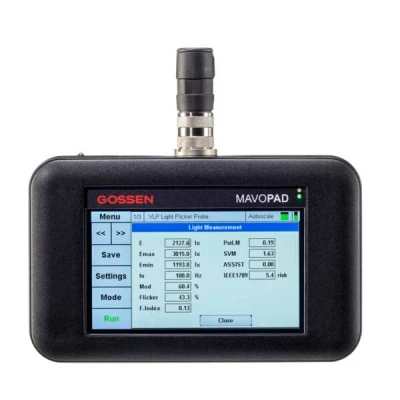

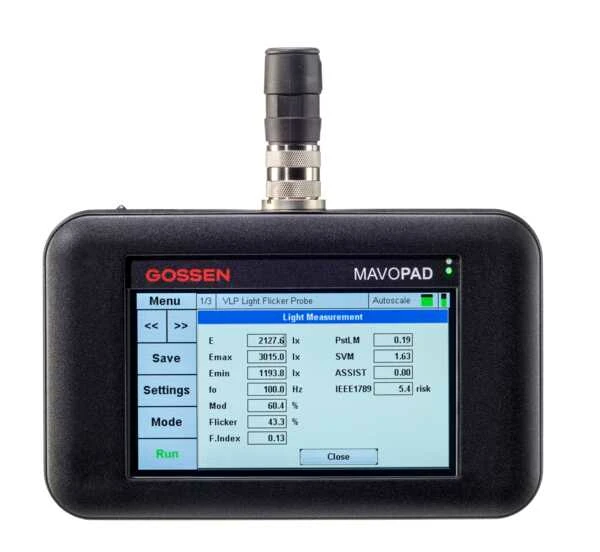

MAVOPAD
Flicker meter for PstLM, SVM, ASSIST Mp, IEEE 1789
The MAVOPAD is designed for extremely fast and precise measurement recording and has high computing power. This enables extensive analyzes in the time and frequency domain, which are a prerequisite for determining current flicker measurements.
- Many evaluation methods, both time and frequency weighted
- Universal display, measured values, time diagram, frequency spectrum
- High measurement accuracy and high resolution with 16 bit AD converter
- Extremely high sampling rate, up to 1.6 MHz with up to 4 channels
- Integrated data memory, CSV data format
- Measuring device and calibration from a single source!
Flicker – time weighted
- Dominant frequency, flicker %, flicker index, modulation
- Minimum illuminance: > 200 lx
- Flicker frequency: 50 Hz … 400 kHz
Flicker – frequency weighted
- PstLM, SVM, ASSIST Mp, IEEE 1789
- Minimum illuminance: > 1000 lx
Illuminance
- Measuring range: 1 lx … 20,000 lx, mean, maximum, minimum
- Accuracy: < 5%, standard illuminant A at 1000 lx
- Spectral sensitivity: 480 nm … 660 nm
Miscellaneous
- Sampling rate: up to 1.6 MHz
- Probe connection cable: 0.8 m, Pluggable
- Supply: Li-Ion battery
- Interface: USB 2.0 with Micro-B socket
- Memory: 32 GB
1 x MAVOPAD
1 x VLP Light Flicker Probe
1 x tripod holder for probe
1 x probe extension cable, length 0.8 m
1 x LI-ION battery (built-in)
1 x power supply
1 x USB 2.0 cable plug A to plug Micro-B, length 1.0 m
1 x touch control pen
2 x programming pen
1 x plastic transport case
1 x operating instructions D/GB
1 x test certificate
