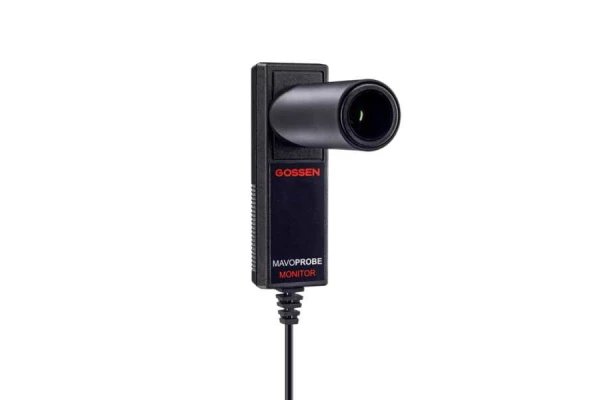

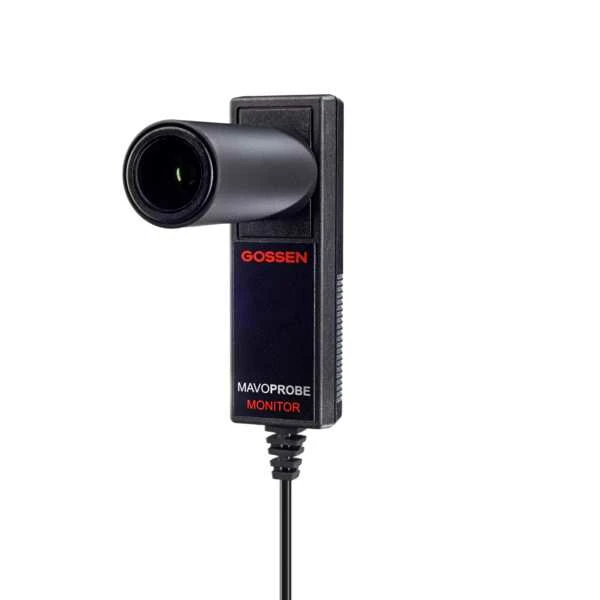

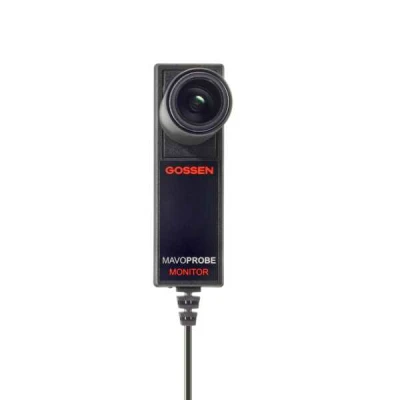

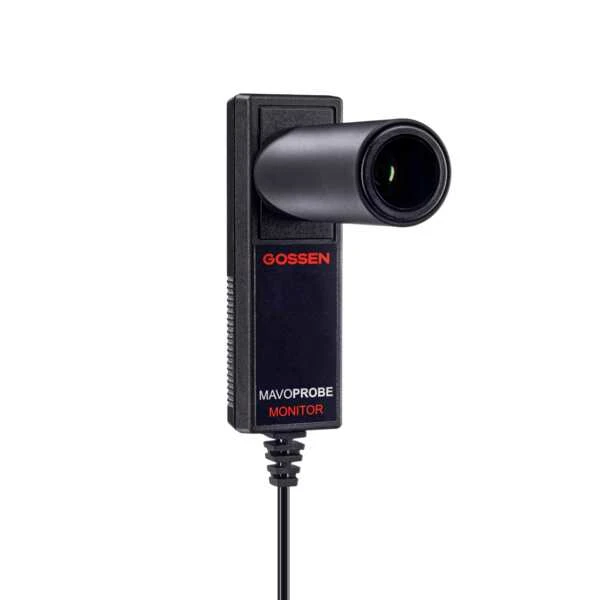

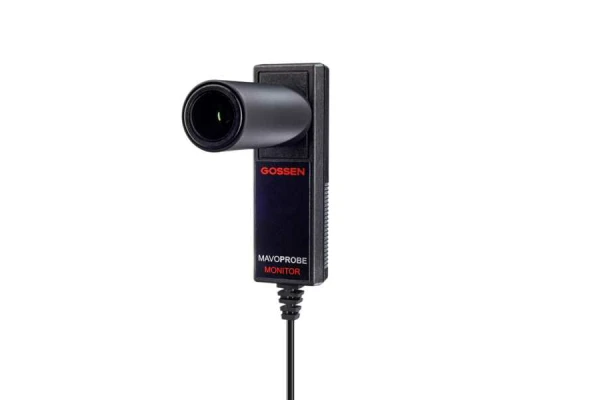

MAVOPROBE MONITOR
High-precision contact measuring probe for luminance Class B DIN 5032-7
- Universal use as a measuring device or single and multi-channel measuring system
- Simple system integration, serial data transmission, disclosed protocol
- Self-sufficient calibration, low packaging effort and cost-effective shipping
- Sustainable device concept, firmware update via USB interface
- Optional extendable connection cable and optional adapter for USB 2.0 plug A
- Measuring device and calibration from a single source !
Luminance
- Measuring range: 0.001 cd/m² … 19,999 cd/m²
- Accuracy: +/- 2.5% +/- 1 digit
- Light entry surface: Ø 19 mm
Miscellaneous
- Measuring rate: 2 measurements / second
- Connection cable: 1.5 m, pluggable
- Supply: via MAVOMASTER or USB interface
- Interface: USB 2.0 with optional USB adapter cable V074A
1 x MAVOPROBE MONITOR
1 x adapter disk
1 x operating instructions D/GB
1 x final test certificate
