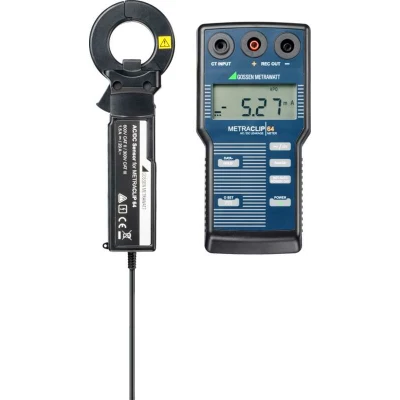

METRACLIP 64
Milliampere Current Clamp for Measuring Fault and Process Signal Current
The milliampere clamp is very well suited for the measurement of small direct and alternating currents as of a value of 1 mA.
- Measuring ranges: – DC 100 mA / 1000 mA, – AC 100 mA / 1000 mA / 10 A
- Switching back and forth between DC and AC measurements
- Zero balancing for DC measurements
- Measured value storage (DATA HOLD)
- Power saving circuit
- Current clamp with 1.2 meter cable length
- Clip opening 30 mm Ø
- Analog output (0 … 100 mV) for connecting recorders, e. g. multimeters with memory
1 measuring instrument
1 current clamp
4 LR6 batteries
1 carrying pouch
1 set of operating instructions
1 data logger cable, consisting of two cables à 1,8 m each with 1 contact-protected plug and 1 alligator clip
