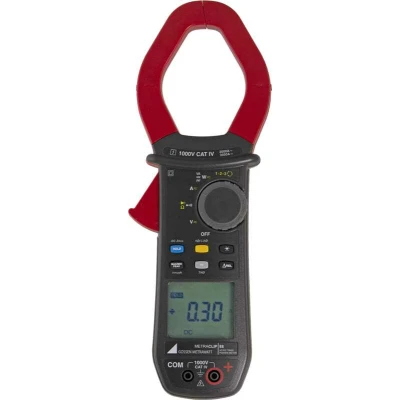

METRACLIP 88
Clamp Multimeter for Current, Voltage, Power, Harmonics and Frequency, 1000 V CAT IV
- Electrical safety per IEC 61010
- TRMS measurement
- Current measurement (AC and DC)
- Voltage measurement (AC and DC)
- Power measurement (W, VA, var and PF)
- THD measurement
- Starting and overcurrent measurement (true inrush)
- Frequency measurement
- Automatic measuring range selection
- Relative and differential measurements
- Display value storage (Data Hold)
- Data logging (min., max., peak)
- Continuity test, acoustic signal
- Resistance measurement
- Diode test
- Phase sequence display
- Phase sequence
- LCD / digits backlit in blue10,000
- Auto power-off
- Test report incl.
- Clamp opening: 60 mm
- Current:
AC 99,99 / 999,9 / 2000 A rms bei 10 Hz – 1 kHz
DC ±99,99 / ±999,9 / ±3000 A dc
AC+DC 99,99 / 999,9 / 2000 A rms
99,99 / 999,9 / 3000 A peak - Inrush current: 20 ..2000 A rms / 3000 A peak
- Voltage:
AC 99,99 / 999,9 V rms bei 10 Hz – 3 kHz
DC ±99,99 / ±999,9 V dc
AC+DC 99,99 / 999,9 V rms
99,99 / 999,9 / 1400 V peak - Frequency:
f (Uac) 5,0 Hz ..19,99 kHz
f (Iac) 5,0 Hz ..999,9 Hz - Power:
Active power: 9999 W / 99,99 / 999,9 / 3000 kW
Apparent power: 9999 VA / 99,99 / 999,9 / 3000 kVA
Reactive power: 9999 var / 99,99 / 999,9 / 3000 kvar
PF -1,00 ..+1,00
DPF 0,00 ..1,00 - Distortion:
Ripple 0,1 ..1000 %
CF 1,00 ..10,00
THDr / THDf 0,0 ..100 % / 0,0 ..1000 %
1 Clamp multimeter
2 Measurement cables (red and black, 1.6 m long), each with contact protected plug and plug-on test probe, CAT IV 1000 V/15 A
4 1.5 V batteries
1 Carrying pouch with holding strap
1 Test report
1 Safety data sheet
1 Condensed operating instructions in D/GB/F/E/I, printed
1 Operating instructions in D/GB/F/E/I, on mini CD ROM
