• CAT III 1000 V
• Wide range of applications, 3 measuring ranges 60 /600 /6000 A AC and large bandwidth 10 Hz … 10 kHz for harmonic analysis
• Simultaneous measurement in all 3 phases
• Precise measurements even with low currents, due to wide dynamic range and high sensor sensitivity
• Low conductor position influence and minimum stray field influence
• Easy to operate in restricted space thanks to small sensor cross-section of 9.9 mm and slim end cap of 13.6 mm
• Safe handling even with protection gloves; opening of sensor and measuring range setting in one-hand operation
• Extremely long battery life of up to 1,000 hours
• External power supply for long-term measurements (optional)
• Current sensor with protection type IP65, measuring amplifier with IP40
• High level of safety for the user, measurement category 1000 V@CATIII, 600 V@CATIV and unlimited overload capacity

Feature Specifications

Measuring ranges 60 A 600 A 6000 A

Output signal (AC) 50 mV/A 5 mV/A 0,5 mV/A

Residual current / ripple 8 mV eff. 2 mV eff. 2 mV eff.

Measuring uncertainty (45… 65 Hz) ±1% ±0,1 A ±1% ±0,1 A ±1% ±1 A

Overload capacity unlimited

Linearity ±0,2% of rdg.

Bandwidth 10 Hz bis 10 kHz (-1 dB)

Phase angle error < ±1° (45… 65 Hz)

Min. load impedance 100 kO for indicated accuracy

Type Loop length max. Article No.

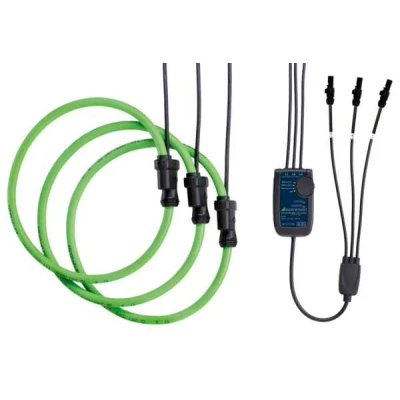

METRAFLEX 6003 XBL 61 cm Z463A

91 cm Z463B

122 cm Z463C
