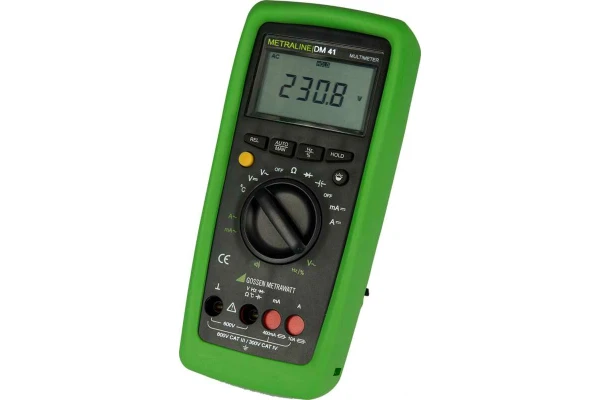

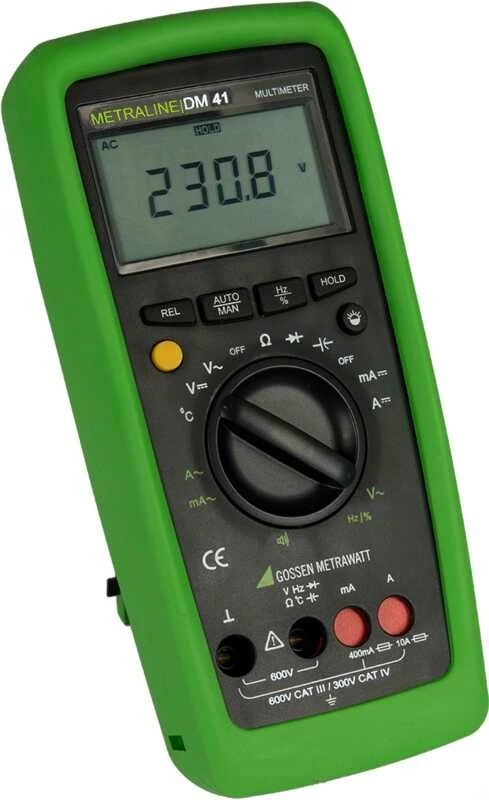

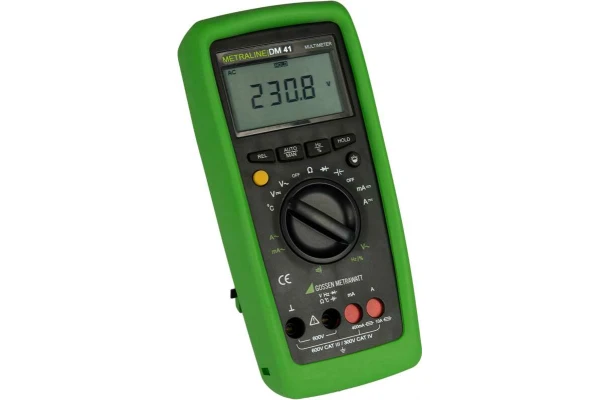

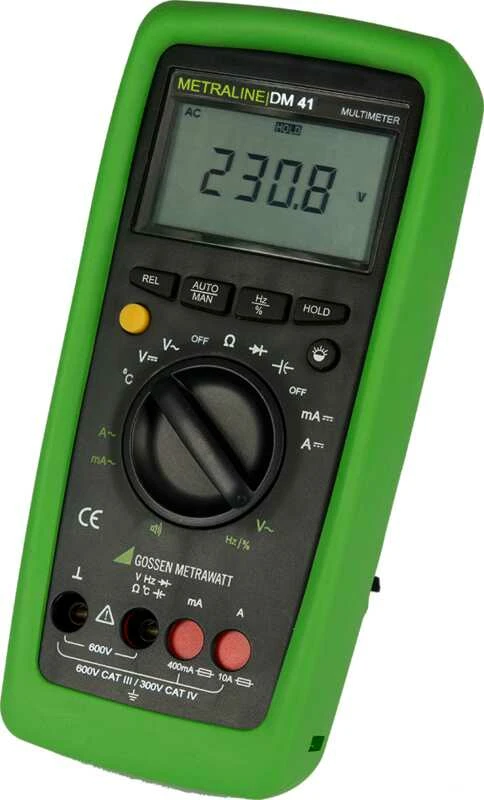

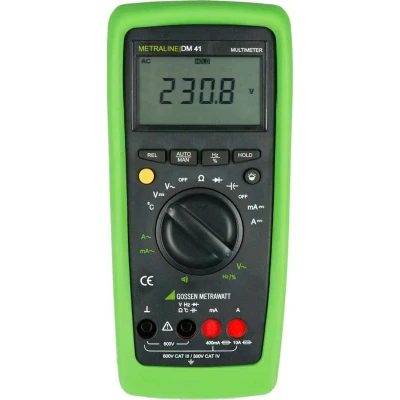

METRALINE DM41
Digital multimeter with temperature measurement
The METRALINE DM41 offers all of the measuring functions of a comprehensive, medium-priced multimeter: convincing technology with voltage, resistance, current and temperature measuring ranges, as well as additional measuring functions plus automatic functions such as frequency and duty cycle measurement.
- Frequency range up to 1 kHz
- Duty cycle measurement
- Automatic blocking sockets (ABS)
- Resolution: 4000 digits (3¾ places)
- Digital display with background illumination • Basic accuracy: 0.5% V DC
- Voltage: V DC 100 μV … 1000 V and V AC 100 μV … 1000 V
- Current: A DC 10 μA … 10 A and A AC 10 μA … 10 A
- Resistance: 100 mΩ … 40 MΩ
- Temperature: -50 … +1300 °C, type K thermocouple • Frequency measurement: 0.001 Hz … 500.0 kHz
- Duty cycle measurement: 1% … 98.9% (1 kHz)
- Capacitance measurement: 1 pF … 200.0 μF
- Continuity and diode testing
- Hold / peak / min.-max. / relative (zero)
- Automatic/manual measuring range selection
- Automatic blocking sockets (ABS)
- Measuring category: 300 V CAT IV, 600 V CAT III
- Rubber holster for protection against shocks and impacts
- 3-year guarantee
- Universal use in all fields of electrical engineering!
- Digital display with 4000 digits
- Measurement of voltage and current, AC and DC, resistance, temperature, frequency, duty cycle, capacitance, continuity/diodes
- Automatic measuring range selection and measured value storage
- Safety for the user and the instrument in measuring category CAT III up to 600 V and CAT IV up to 300 V
Auto-ranging multimeter for use in all fields of electrical engineering, e.g. electrical installation, study programs and training
1 x digital multimeter
1 x rubber holster
2 x 1.5 V AA battery
1 x measurement cable set
1 x condensed operating instructions
