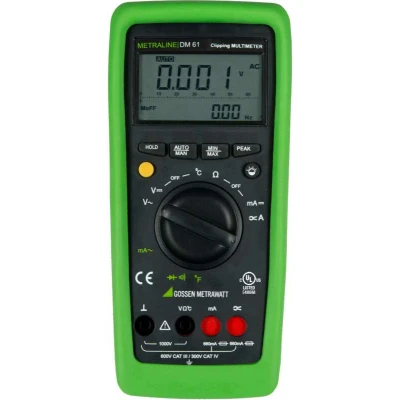

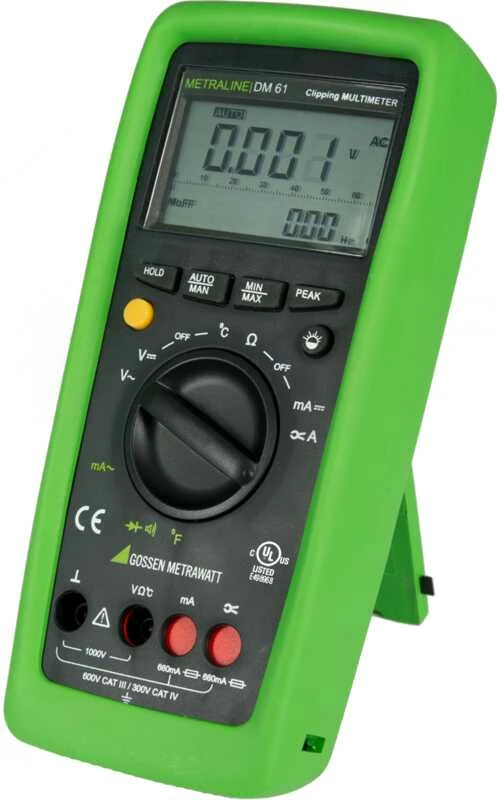

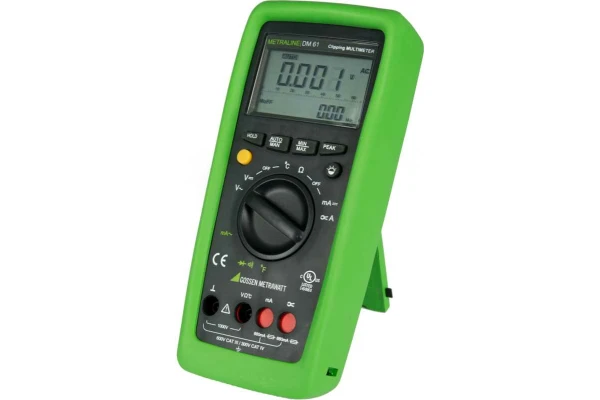

METRALINE DM61
Digital multimeter with analog bar graph and temperature measurement
The METRALINE DM61 offers all of the measuring functions of a comprehensive, medium-priced multimeter: convincing technology with voltage, resistance, current and temperature measuring ranges, as well as additional measuring functions plus automatic functions such as an adjustable clip factor for current transformers.
- 1000:1 clip function for optional current transformers
- Automatic blocking sockets (ABS)
- Resolution: 6600 digits (3 6/7 place) and analog bar graph (66 points)
- Dual digital display with background illumination
- Basic accuracy: 0.4% V DC
- Voltage: V DC: 100 μV … 1000 V, V AC: 100 μV … 1000 V
- Current (direct): A DC: 10 μA … 660 mA, A AC: 10 μA … 660 mA
- Current with optional clamp: 10 mA … 660 A (clip: 1000:1)
- Resistance: 100 mΩ … 66 MΩ
- Temperature: -50 … +1300°C, type K thermocouple
- Continuity and diode testing
- Hold / peak / min.-max. / relative (zero)
- Automatic/manual measuring range selection
- Automatic blocking sockets (ABS)
- Measuring category: 300 V CAT IV, 600 V CAT III
- Rubber holster for protection against shocks and impacts
- 3-year guarantee
- Universal use in all fields of electrical engineering!
- Measured value indication with digital display (6600 digits) and analog scale
- Measurement of voltage and current, AC and DC, resistance, temperature, continuity/diodes
- Current measurement up to 660 A via current clamp transformer with a transformation ratio of 1000:1
- Automatic measuring range selection and measured value storage
- Safety for the user and the instrument in measuring categories CAT III up to 600 V and CAT IV up to 300 V.
The auto-ranging multimeter for use in all fields of electrical engineering, e.g. electrical installation, study programs and training
1 Digital multimeter
1 Rubber holster
2 Batteries, 1.5 V AA
1 Measurement cable set
1 Condensed operating instructions
