METRISO PRIME

SKU: M550UCategoria: Etichette: , , , , ,

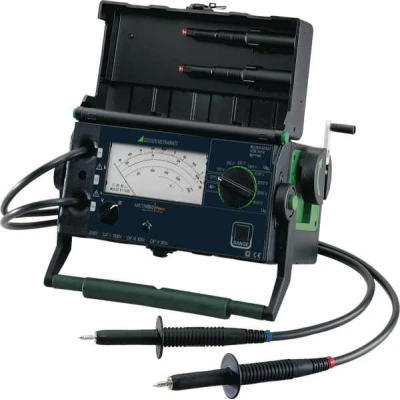

5000 V Insulation Measuring Instrument, Analog, with hand crank generator

Analog high-voltage insulation measuring instrument with the following voltages:

100, 250, 500 and 1000 V (per EN 61 557 part 1) and 1500, 2000, 2500 and 5000 V.

  • Large measuring range from 10 k to 1 T Ohm
  • Easy to read logarithmic display
  • Measuring voltages: 100, 250, 500, 1000, 1500, 2000, 2500 and 5000 V
  • Measurement to 1000 V per DIN VDE 0413
  • Measuring range: 100 k to 100 M Ohm (1000 V)
  • Voltage measurement to 2000 V DC, AC
  • Guard terminal for the elimination of surface current

The battery powered METRISO PRIME can be converted into the muscle powered version by replacing the battery pack with a crank generator.

Type METRISO PRIME

Art.No. M550U

Standard Equipment High-voltage insulation measuring instrument, muscle powered

Istruzioni per l’uso
Supplemento
Certificato CE
Scheda tecnica
Opuscolo, volantino, brochure, …

1 high-voltage insulation tester with permanently connected measurement cables and test prods, 2 crocodile clips (5 kV version) and hand crank generator

1 carrying strap

1 operating instructions
