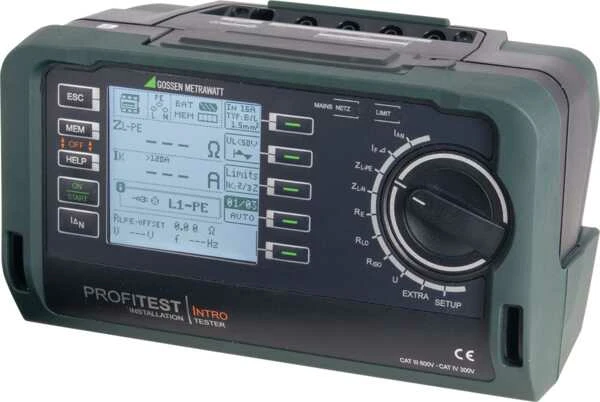

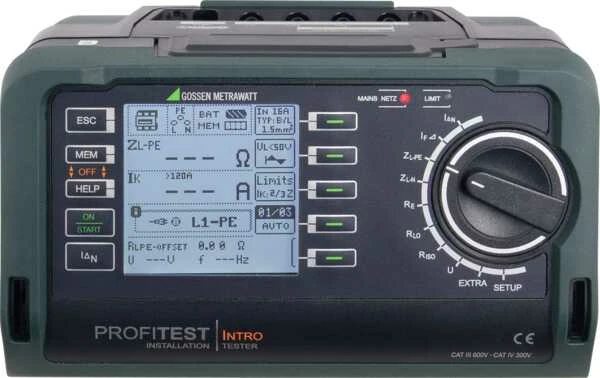

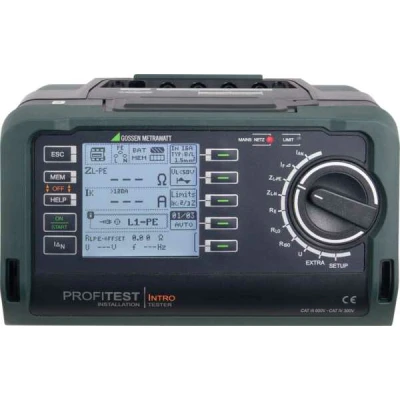

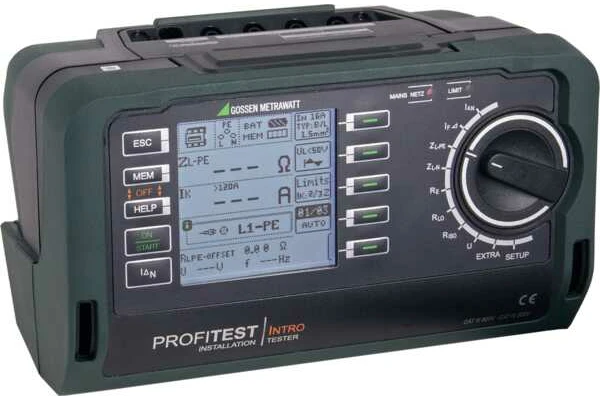

PROFITEST INTRO

SKU: M520TCategoria: Etichette: , , , ,

Measuring and test instrument for testing the effectiveness of protective measures at stationary electrical installations after completion, repair or expansion, and for periodic testing (DGUV regulation 3)

PROFITEST INTRO – universal, handy and rugged test instrument for performing all measurements for testing the effectiveness of protective measures at stationary electrical installations as required by IEC 60364-6 (DIN VDE 0100-600) and other country-specific standards, and as specified in the individual sections of DIN EN 61557 (VDE 0413). Measuring category: 300 V CAT IV/ 600 V CAT III.

  • Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
  • Storage concept for up to 50,000 data records
  • Testing of all up-to-date AC/DC sensitive RCDs, and many others
  • User safety by means of PE detection when using finger contact

  • Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
  • Loop and line impedance measurement with DC bias magnetization
  • Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
  • Low-resistance measurement with automatic polarity reversal
  • Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, F, B, B+ and EV)
  • Measurement of earth resistance (loop)

  • Intuitive user prompting with help function which provides support for pending measuring tasks
  • All decisive measuring functions can be quickly selected with the rotary switch.
  • Especially well suited for mobile use, even at construction sites and in industrial environments, thanks to the compact, impact-resistant housing with integrated rubber protector
  • Also suitable for international use thanks to extensive setting options for language etc.

Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100) and other country-specific standards.

Istruzioni per l’uso
Supplemento
Certificato CE
Scheda tecnica
Guida di riferimento rapido
Opuscolo, volantino, brochure, …

1 PROFITEST INTRO
1 Neck strap
1 Battery pack
1 KS-PROFiTEST INTRO (Z503L)
1 USB interface cable
1 Factory calibration certificate
1 Condensed operating instructions
1 Supplementary sheet with safety information
