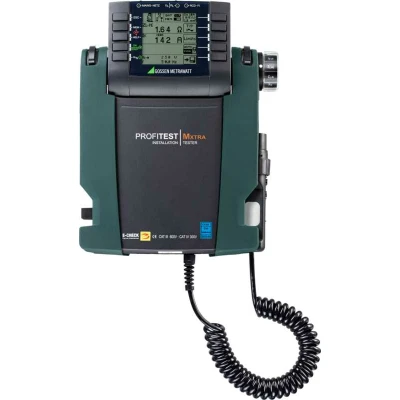

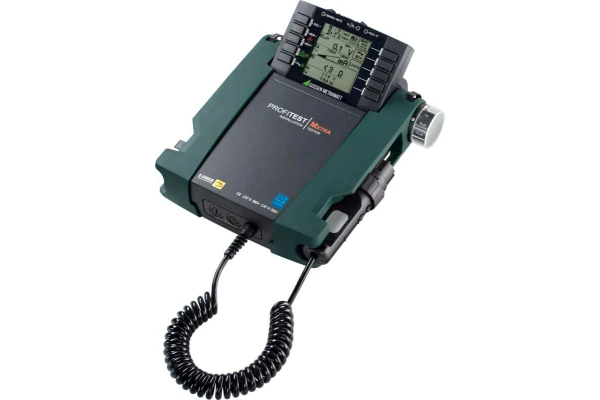

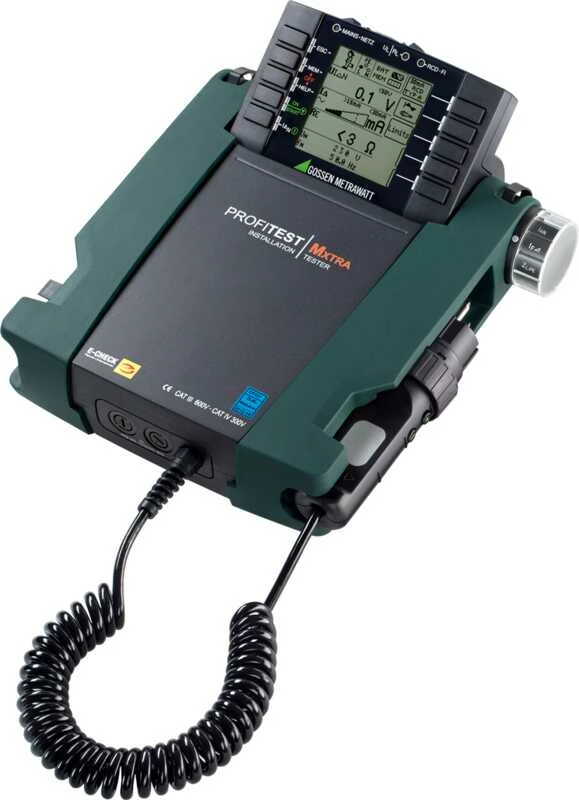

PROFITEST MXTRA
Measuring and test instrument for testing the effectiveness of protective measures at stationary electrical installations after completion, repair or expansion, and for periodic testing (DGUV regulation 3)
The PROFITEST MXTRA provides all measuring and test functions for testing the effectiveness of protective measures at stationary electrical installations – with predefined, or optionally with programmable, test sequences which are required in accordance with test standards IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100). Measuring category: 300 V CAT IV/ 600 V CAT III.
- Measuring and test sequence – easy setup of the system structure / measuring and storage / report generation
- Preconfigured and user programmable test sequences for testing electric systems quickly
- Storage concept for up to 50,000 data records
- Testing of all up-to-date AC/DC sensitive RCDs, IMDs, RCMs and many others
- User safety by means of PE detection when using finger contact
- Broad-range measuring device for all alternating and 3-phase electrical systems with voltages from 65 to 500 V and frequencies of 15.4 to 420 Hz
- Loop and line impedance measurement with DC bias magnetization
- Measurement of insulation resistance using nominal voltage, with variable or rising test voltage
- Low-resistance measurement with automatic polarity reversal
- Testing of residual current devices and special RCCBs (selective S, SRCDs, PRCDs, Schukomat, Sidos, types G/R, AC, A, F, B, B+, EV and MI)
- Testing of RCCBs in IT systems
- Measurement of earth resistance (mains operation)
- Standards-compliant testing of charging stations per IEC 61851 in combination with the PRO-TYP I/II test adapter
- Automatic test sequence function
- USB interfaces
- Push-print function – transmission of the measured value after measurement
PROFITEST – versatile and future-proof
- Intuitive operation
- Efficient work
- Standards-compliant testing
- Legally secure documentation
PROFITEST – saves time and money
- As single test instrument for a broad range of applications
- All measurements without any bothersome replugging of the measurement cables
- Can be used all over the world thanks to language selection
PROFITEST – even 10 years down the road
- Future-proof thanks to firmware updates
- 10-year service guarantee
- DAkkS certificate issued by own calibration laboratory
- User support for questions about testing
PROFITEST – quick and easy report generation
- Cascadable, future-proof software concept
- Modern data management by means of customer and measurement data administration
- Creation of system structures – from the system all the way down to the measuring points
- Quick and easy generation of a legally secure report per ZVEH
PROFITEST – reliable measuring and testing
- Easy operation with rotary switch
- Predefined test sequences for structured testing
- On-site help thanks to help function with wiring diagrams
- Measuring category: 600 V CAT III / 300 V CAT IV
- 4-wire measuring method – no compensation of the measurement cables is required
Testing of the effectiveness of protective measures at stationary electrical installations per IEC 60364-6 (DIN VDE 0100-600), EN 50110-1 (DIN VDE 0105-100), EN 60204-1 (VDE 0113-1), and other country-specific standards. Testing of electric charging stations per EN 61851-1 (DIN VDE 0122-1), and earth measurements
1 PROFITEST MXTRA
1 Earthing contact plug insert (country-specific)
1 Two-pole measuring adapter
1 Cable for expansion into a 3-pole adapter (PRO-A3-II)
2 Alligator clips
1 Neck strap
1 Set of rechargeable batteries (Z502H)
1 Charger (Z502R)
1 Condensed operating instructions
1 Supplementary sheet with safety information
1 DAkkS calibration certificate
1 USB interface cable
1 ETC software as download
