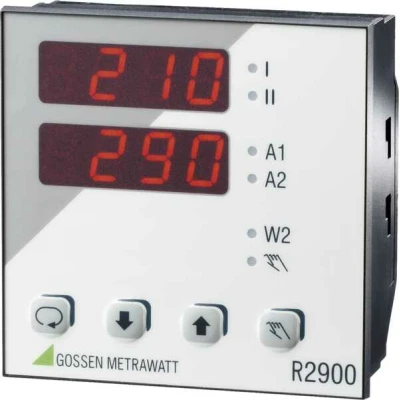

R2900

Compact Controller, 96 x 96 mm

The R2900 temperature controller offers top functionality and flexibility with a minimal installation depth.

  • Digital displays for actual value, as well as setpoint / manipulating factor / heating current
  • Keys for manual operation
  • Proxy setpoint with external activation
  • Rising or falling setpoint ramp
  • Regulated temperature becomes active in the event of sensor breakage
  • Heating circuit and heating current monitoring
  • Adapted for export markets: 230 V / 110 V, degrees Celsius / Fahrenheit
  • 3 Years Warranty
  • Made in Germany

Order features:

  • 2-point, 3-point, continuous-action and step-action controller
  • Differential and follow-up control with second input
  • Sensor input for type J, L, K, B, S, R and N thermocouples, and
  • PT100 sensors (2/3-wire) or standard signals of 0/2 to 10 V and 0/4 to 20 mA
  • Relay or transistor output
  • 2 limit contacts with absolute/relative monitoring,
  • Actuation suppression, NO/NC contact
  • RS 232 / RS 485 communications interface
  • Auxiliary power: 110 to 230 VAC

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Descrizione dell’interfaccia

  • Controller
  • 2 mounting components
  • Multilingual operating instructions
  • Multilingual operating instructions for data interface (with designation F1 only)
