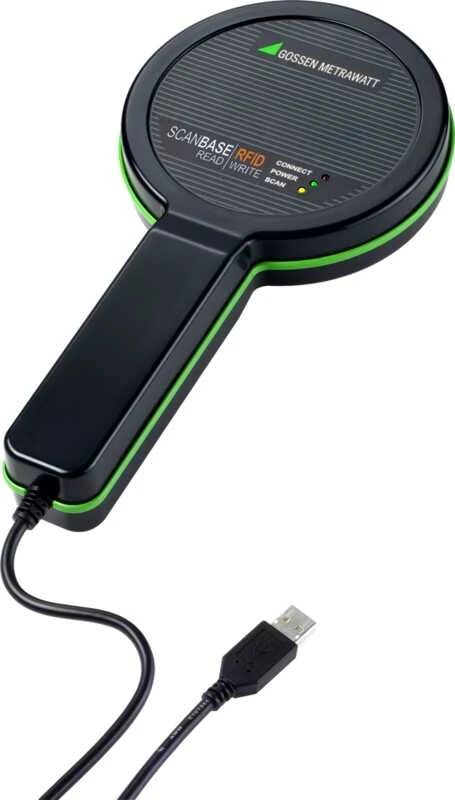

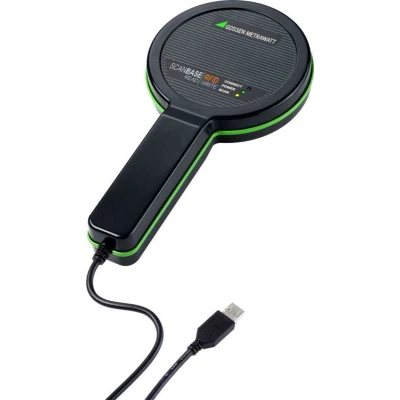

SCANBASE RFID
RFID Reader / Writer (13.56 MHz) for Test Instruments with USB Port
The RFID identification system is used to mark and identify tools and equipment.
ID numbers can be written to RFID tags via a PC with the SCANBASE RFID or .SCANBASE RW.
SCANBASE RW devices read out the code and forward it to our test instruments, in order to be able to allocate measured values and test results to the device under test in an unequivocal fashion (*).
SCANBASE RW SCANBASE RW
Z751E Z751G
- Interface USB RS 232
- Frequency 13.56 MHz
- Readable codes ISO15693, Z751R, Z751S, Z751T
- Approx. scanning distance 30 mm
- Power supply Via USB Via RS 232
- Operating temperature -10 to +55° C
- Dimensions 240 x 120 x 35 mm
(*) Preset for german keybord only
See additional ID systems for data logging.
