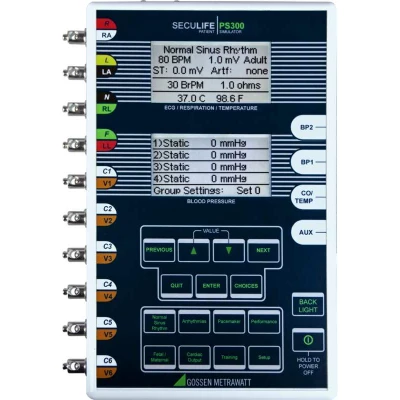

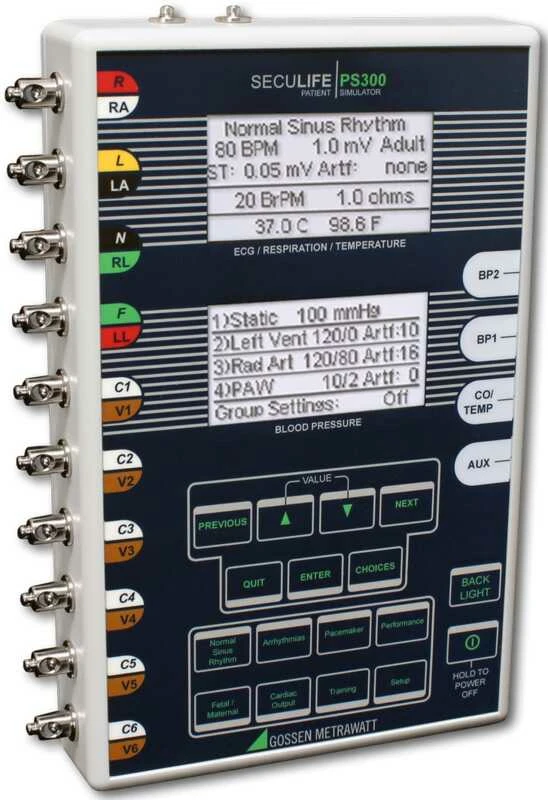

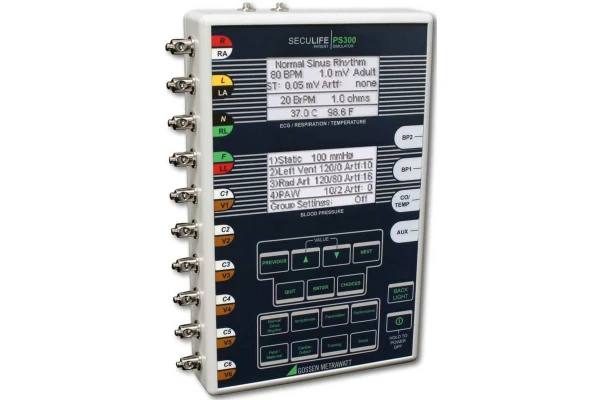

SECULIFE PS300
Multi-patient Simulator for ECG
With the SECULIFE PS300 Multi-Patient Simulator, you can test ECG and long-term ECG devices for flawless functioning.
- EKG
30, 40, 45, 60, 80, 90, 100, 120, 140, 160, 180,
200, 220, 240, 260, 280 and 300 BPM
Sine waves: 0.1, 0.5, 5, 10, 40, 50, 60 and 100 Hz
Square waves: 0.125 and 2 Hz
Triangle waves: 2 Hz, 2.5 Hz
Haver triangle waves: 30, 60, 80, 120, 200 and 250 BPM
High level output: 1 V p-p
Amplitude tolerance:± 1% - Respiration
Apnea, 15, 20, 30, 40, 60, 80, 100, 120 BPM - Static blood pressure
-10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 250, 300, 320 and 400 mmHg - Temperature
0, 24, 30, 37, 40°C
YSI 400 and 700 - SpO2 Simulation
30 to 300 BPM
80, 90 and 97% - Integrated terminals for continuity test (lead test)
- Front panel resistant to disinfectant wipes
- Terminals
10 outputs for electrode plugs (2 to 4 mm ), snap fasteners and clips
1 output with 1 V signal strength for ECG devices without amplifier
Mini DIN terminals (compatible with many blood pressure cables) - Power supply
9 V battery or external power pack
Low battery display and battery life display
