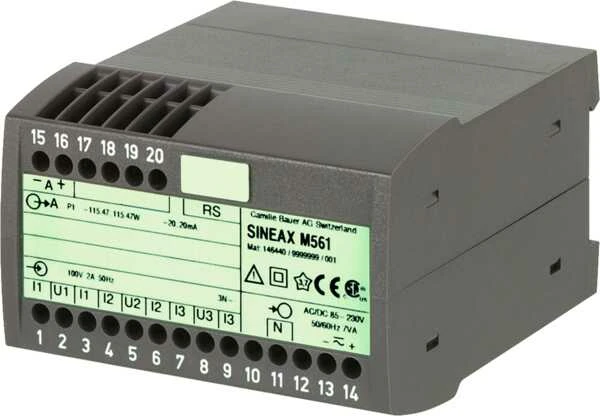

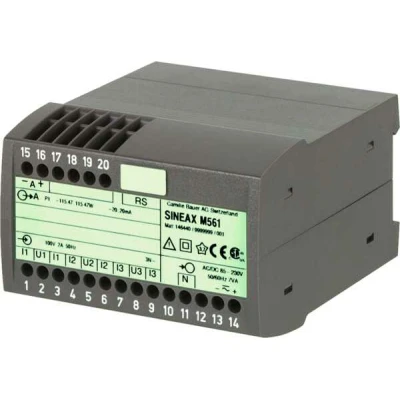

SINEAX M561

Prog. Multi-Transducer, 1 Analog Out, RS232

For acquiring 1 freely selectable measured quantity in electrical systems. Equipped with 1 electrically isolated current output.

  • 1 analogue output
  • Application (system) programmable
  • Rated current 1 to 6 A programmable
  • Rated voltage 57 to 400 V (phase-to-neutral) or
  • 100 to 693 V (phase to phase) programmable
  • Universal analogue outputs (programmable)
  • High accuracy: class 0.5
  • Software with password protection for programming, data analysis, power system status simulation, acquisition of meter data and making settings
  • DC, AC power pack with very large tolerance range
  • Mounting: For snapping onto top-hat rail
  • CSA certificate

SINEAX M561 M562 M563

Article number 561-4.. 562-4.. 563-4..

Measuring inputs 1 2 3

Analogue outputs 1 2 3

RS232 interface x x x

Auxillary power Preferred types

24 … 60 VAC,DC 158411 158437 146458

85 … 230 VAC,DC 158429 158445 146440

Order other variants with complete order code (561-4… ….) in accordance with the data sheet. See data sheet for default configuration.

Istruzioni per l’uso
Certificato CE
Scheda tecnica
Opuscolo, volantino, brochure, …
Certificato

1 Operating Instructions for SINEAX M561/M562 resp. M563, in three languages: German, French, English

1 blank type label, for recording programmed settings
