Versatile data collector:

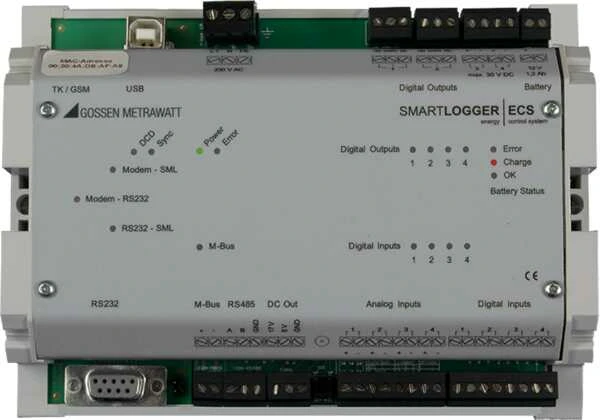

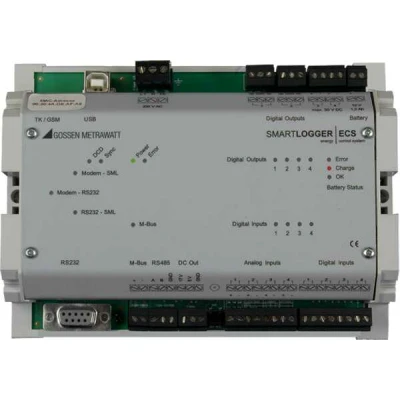

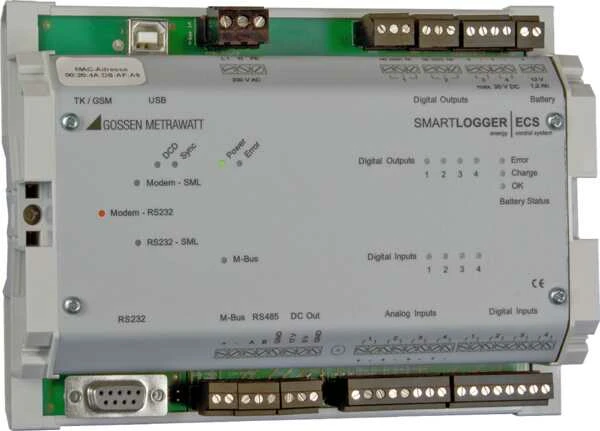

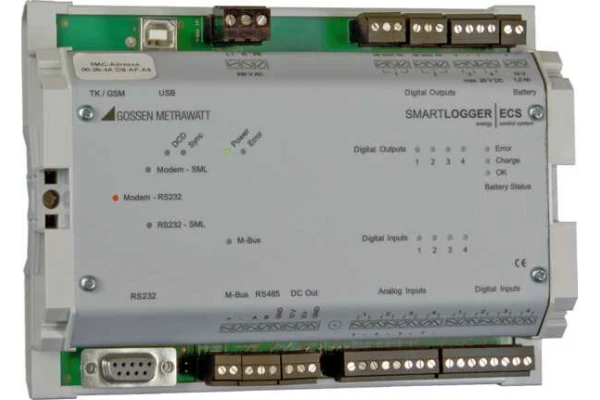

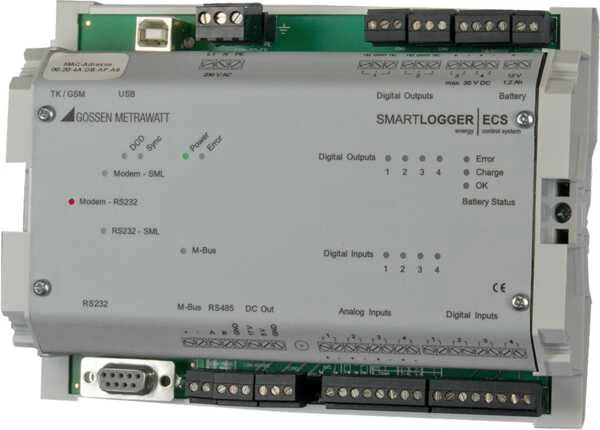

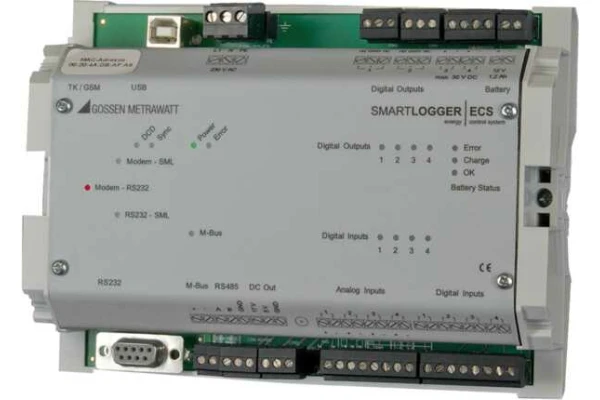

3 Years Warranty The SMARTLOGGER has 4 digital inputs for meters with pulse output and can additionally manage 10 energy meters with M-Bus interface. Supplementary measured values can be acquired via 4 analogue inputs, which are configurable as voltage, current or temperature inputs. This means that nearly all

• Meter readings (electrical power, gas, water, heat etc.)
• Temperatures (outside, inside, inlet and return temperature, etc.)
• Statuses (burner and pump on-times etc.)
• Analog signals (signal converters, measuring transducers etc.)
• Data from bus compatible measuring instruments and energy meters

can be acquired. Bus compatible measuring instruments and energy meters can be connected via Modbus or M-Bus for users with integrated level converter.

Features

• Manufacturer independent connection of data sources via analog, digital and temperature inputs, as well as universal M-Bus and Modbus interfaces
• Connection to existing infrastructures via Ethernet TCP/IP, as well as GSM, ISDN or analog modem
• Inexpensive creation of networks with standard components
• Internal 2M B flash memory for data
• SMARTLOGGER ECS manager for easy configuration included
• 3 year guarantee
• Made in Germany

Technical Data

• 4 digital inputs, active or passive
• 4 analog inputs: 0 to 20 mA, 0 to 10 V, 5 K NTC
• 2 relay switching outputs, max. 30 V= / 2 A or 125 V~ / 0.5 A
• 2 open collector switching outputs, max. 30 V= / 50 mA
• M-Bus interface for 10 users
• RS 485 / Modbus interface for external devices
• RS 232 interface for configuration and tunnel function
• UPS function with optional, external 12 V= lead-gel battery

SMARTLOGGER Variant Variant

4 digital and 4 analog inputs,

2 relay and 2 open collector outputs: 5 / 17 V DC,

M-Bus repeater for 10 slave modules, Ethernet variant GSM variant

Aux. voltage: 230 V AC, SMARTLOGGER manager on CD

Article no U201A U201B

• Acquisition of energy and consumption data, temperatures, switching statuses and process quantities
• Error message management, continuous comparison of characteristic values and indication of errors via switching output, e-mail or SMS

The SMARTLOGGER manager is included with the

SMARTLOGGER, and provides all of following functions:

• Set up and manage devices, as well as associated connections
• Configuration of: Fault message transmission, acknowledgment and escalation procedures; Digital inputs as pulse, fault message or timer input; Analog inputs and associated limit value monitoring; Mains failure monitoring
• Remote control of switching outputs
• Read-out of meter readings and load profile
