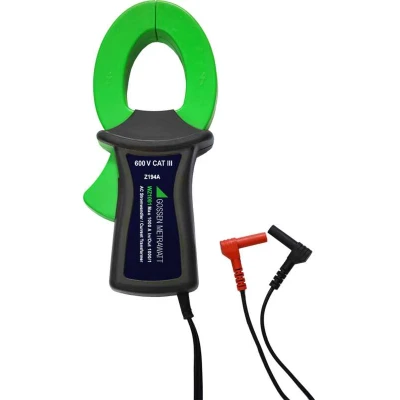

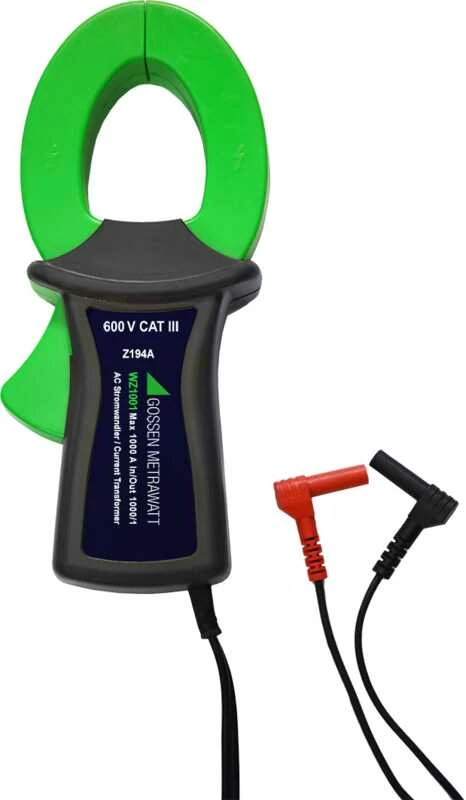

WZ1001
Current Clamp Transformer, 1 … 1000 A AC
- AC clamp meter with transformation ratio of 1000:1
- Output signal: 1 mA AC / 1 A AC
- Accuracy: Class 1 (2.5 VA)
- Measuring category: CAT III 600 per IEC 61010
- Frequency range: 40 … 1000 Hz
- Clamp opening: 43 mm, cable length: 1.5 m
- Minimal ratio error
- Large clamp opening for cables with diameters of up to 43 mm
The AC clamp meter permits interruption-free measurement of alternating current by closing the clamp around the current conductor or busbar.
1 current clamp transformer with connector cable and 4 mm safety plugs
1 set of operating instructions
